Unity Gloucester Flush Composite FD30S Solid Flat Entrance Doorset

Tax included.

UK manufactured fire doors designed to perform by providing durability, security, fire resistance and great looks. A range of composite fire doors to meet relevant building and fire safety regulations.

Key Features

  • 30 minute solid-core fire doors offer unparalleled durability and security.
  • 30 minutes fire resistance (to BS 476 part 22 and BS EN 1634-1:2014+A1:2018) primary test evidence from both sides.
  • Resistance to passage of smoke to EN 1634-3:2004 and CE marked external fire doors.
  • Kite mark (PAS 23 and 24), the range of versatile, maintenance free doorsets meet the mandatory requirements, as well as providing great thermal efficiency.
  • Specifications based on Approved Document L 2010.
  • 3rd Party IFCC Certification Scheme
  • UKCA Marking: External Yes / Internal not required.
  • Tested, Certified, Compliant, Trusted.
  • 25 year design life. (Manufacturer 10 year warranty - Leaf and Frame constructions / threshold / locking system / glass units / door furniture (mechanical) (manufacturer 5 year warranty - Door furniture (finish) / hinges.
  • Range of Colours to choose from at no extra cost.
  • Fire Rated Frame Addon options - Hardwood
  • FireSafe PVC-U Combination Frame Specifications - Outer Frame: PVC-U 70mm fire-rated fully reinforced, intumescent seals fitted, standard white colour.
  • Glazing options.
  • Accessories to choose from.
  • Accessories finishes to choose from.
  • Slide arm Cam action closer (Rutland TS11204) option.
  • Upgrade to Chrome ironmongery option.
  • Toplight option - Toplight Glass Maximum Height 400mm: Obscure glazing and Pyrobelite insulated glass.
  • Costs apply to all additonal items not included within the doorset price & specifications, which may be required to be ordered extra/over as determinded by a recommedned site survey.
  • Lead times average 10-15 working days excluding delivery time.
  • Full specification provided on request.


  • Door Leaf Type: Solid Timber Core.
  • Outer Frame Type: PVCu Extruded.
  • Frame Reinforcement: Steel box section or Hardwood (Cost Option).
  • Intumescent Seals: Applied to top and bottom of the door leaf, to the internal rebate and outside of the outer frame, and selected components.
  • Threshold: Slimline with fire retardant seal - Low Mobility compliant OR 3mm air gap.
  • Timber Cill Options: None, 80x12 / 100x30 / 100x45 / 144x30 / 144x45
  • Hinges: 4no Nico Lift off hinges / Steel butt hinges.
  • Lock: ERA Surefire 4 point autofire locking system with adjustable keeps.
  • Cylinder: 3* Key Thumb turn cyclinder with 3 keys.
  • Handle: Lever-Lever.
  • Viewer: 180 degrees fire rated viewer (Non Cost Option).
  • Knocker: Urn knocker (Non Cost Option).
  • Letter Plate: Fire Rated TS008 Letter plate with integral cowl (Non Cost Option).
  • Closer: Rutland TS11204 overhead closer OR Rutland TS11204 slide arm can action closer.
  • Security Chain: Hook Type (Non Cost Option).
  • Numerals: 75mm aluminium (Non Cost Option).
  • Hardware Finish: Anodised Gold / Silver / Polished Gold / Chrome.
  • Glazing System: Flush glazed with internal beads only. (excl Walliams/T&G)
  • Glass Type: 24mm double glazed unit - Clear or Stippolyte (External 6.8mm laminated / Internal 7.9mm Pyrobelite or 11mm Pyronova. (excl Walliams/T&G)
  • Toplight: Available with Pyrobelite or Pyronova glass (Min height 260mm x Max Height 400mm). (Cost Option: contact sales@activefiresafety.com)


  • Cost options provided on request.
  • Non cost options delete as required.
Deliveries and Lead Times

Standard Fire Door Delivery - £74 for the first door with any additional door £20 each.

Double Doors - £94 for the first double set with any additional set £20 each.

Bespoke orders dispatched usually within 2-3 weeks which take longer due to the manufacturing process and make up of the doors. You'll receive notifications by email or text on the latest status of your order.

Fire Door Frames (Single & Double)
£54 and then £10 for each additional frame.

JB Kind Doors doors

Stock doors delivered 5 to 7 working days

Ironmongery (Door Handles, Hinges, Brackets etc)
£17 flat rate fee *next working day if ordered before 1pm (kick-plates and engraved push-plates up-to 5 working days)

Prior to dispatch our dedicated driver and assistant will quality check your order to ensure the items match your requirements and our quality standard.



Can I Cut A Fire Door To Size

There are strict guidelines whereby only 3mm per side of a door and 5mm from the base can be trimmed.

What's the difference between FD30 & FD60 Fire Door?

FD30 offers 30 minute fire protection and is suitable for all domestic situations. FD30’s is available in 44mm thickness. FD60’s offer 60 minute fire protection, these are available in 54mm thickness and are suitable for higher risk premises and some high risk rooms such as boiler rooms or plant rooms etc.

What type of Glazing can I choose?

All glazing provided by us is fire rated and available in the following finishes:

- Georgian Wired Polished Plate (GWPP) – You can see the wire but it is in clear glass.

- Clear CGI Pyroguard (Clear) – Completely clear.

- Obscure/Frosted (Sandblasted finish to one side) – Clear glass made obscure by sandblasting one face.

Can I paint my door?

You are only able to paint or varnish plywood fire doors with any good quality product.

What about certification?

Certification regarding the conformance with BS476 pt 22 is available on request. Many doors will come with their own unique reference sticker affixed to the top. Please do not remove these.

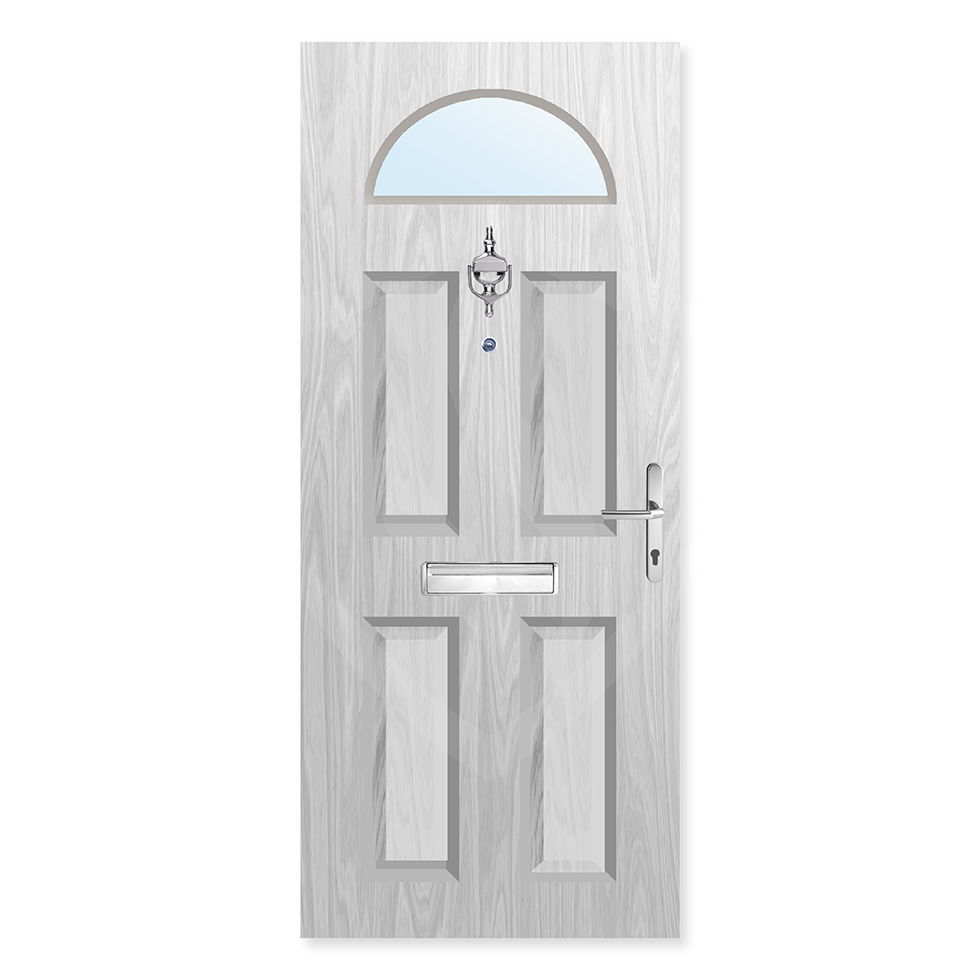

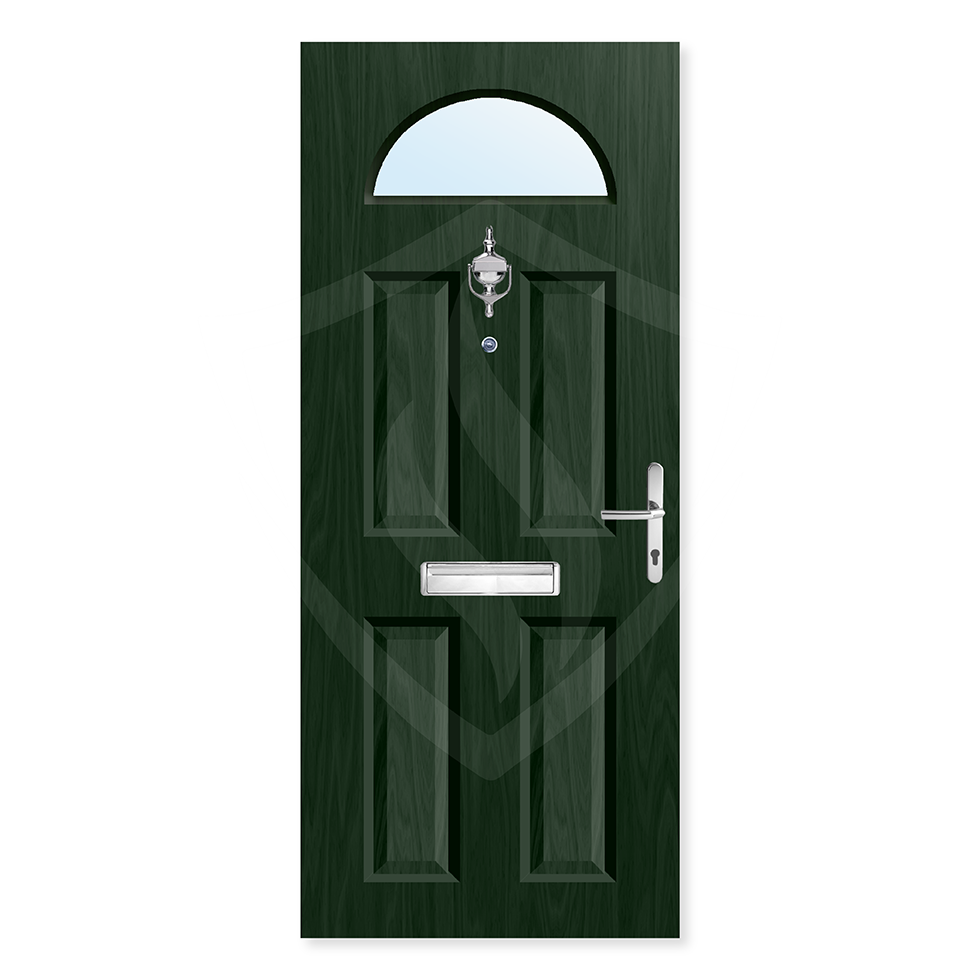

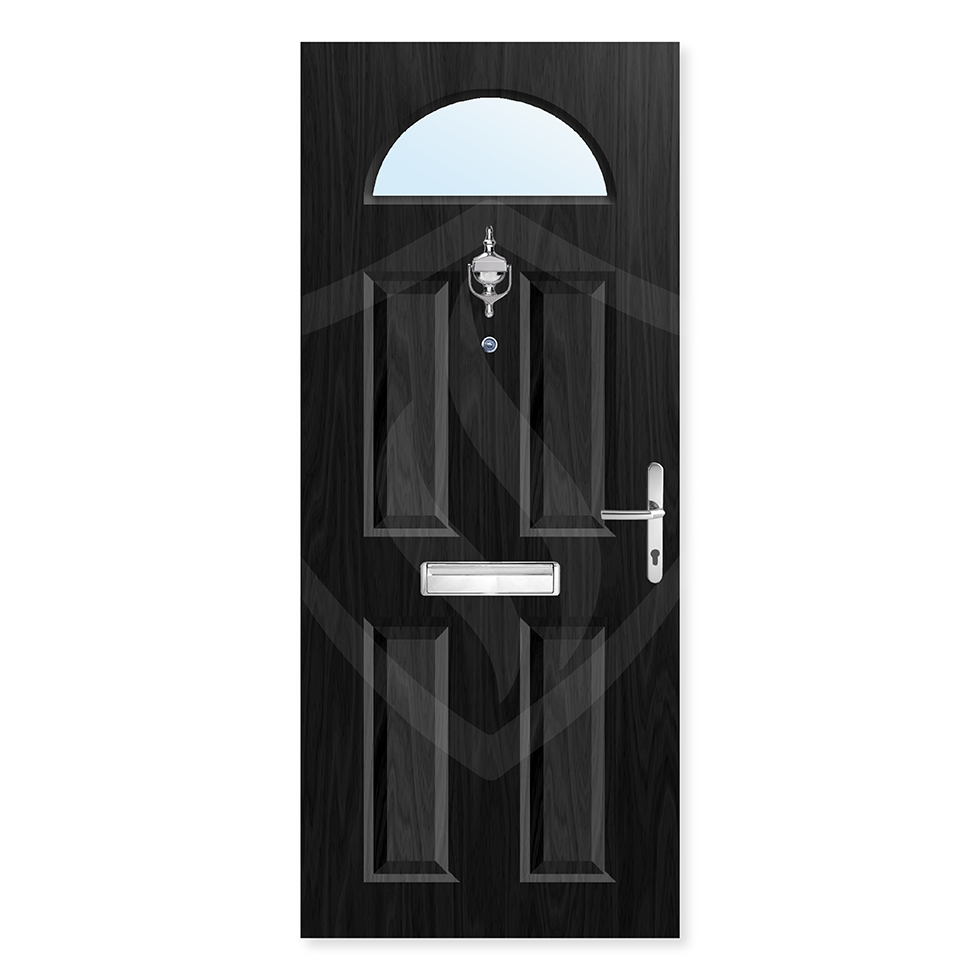

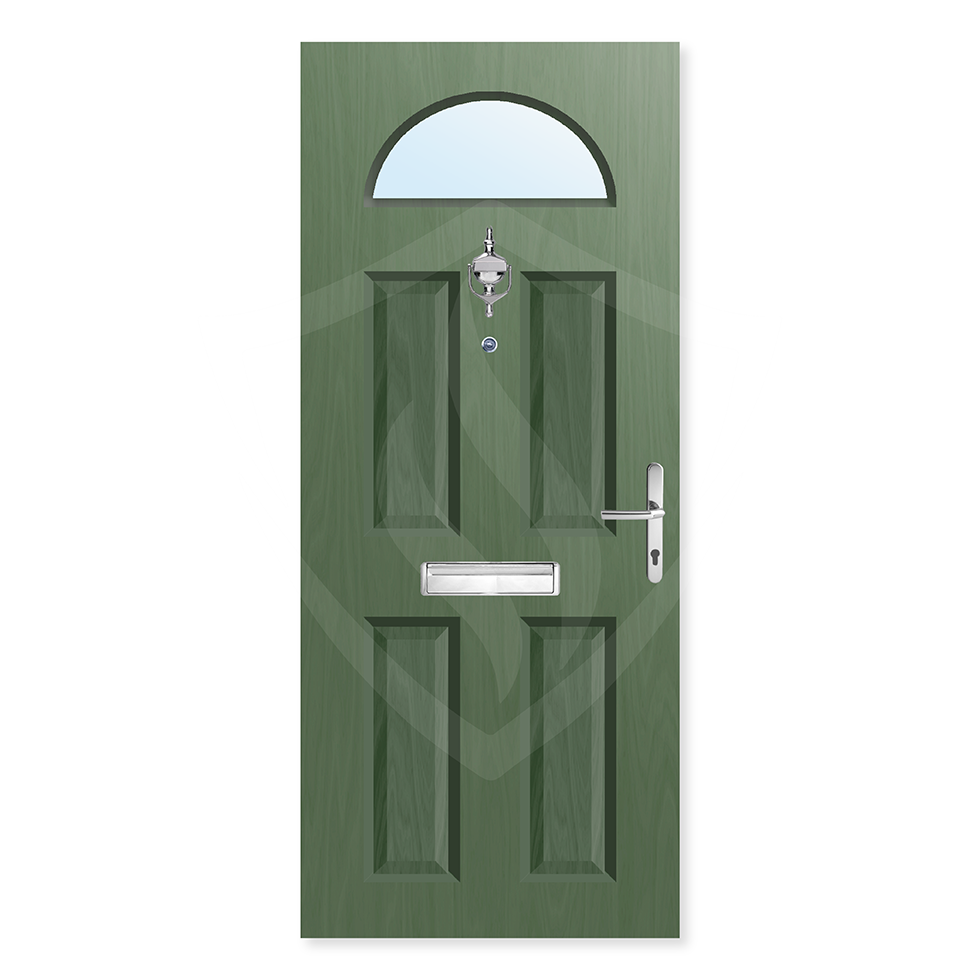

Door Image Guides

Due to some doors being bespoke an original door image is not possible at present, and a design drawing is provided as a guide. We're in the process of updating all our images to resolve this issue, so should you need further guidance we shall do our best to provide a better image were possible
