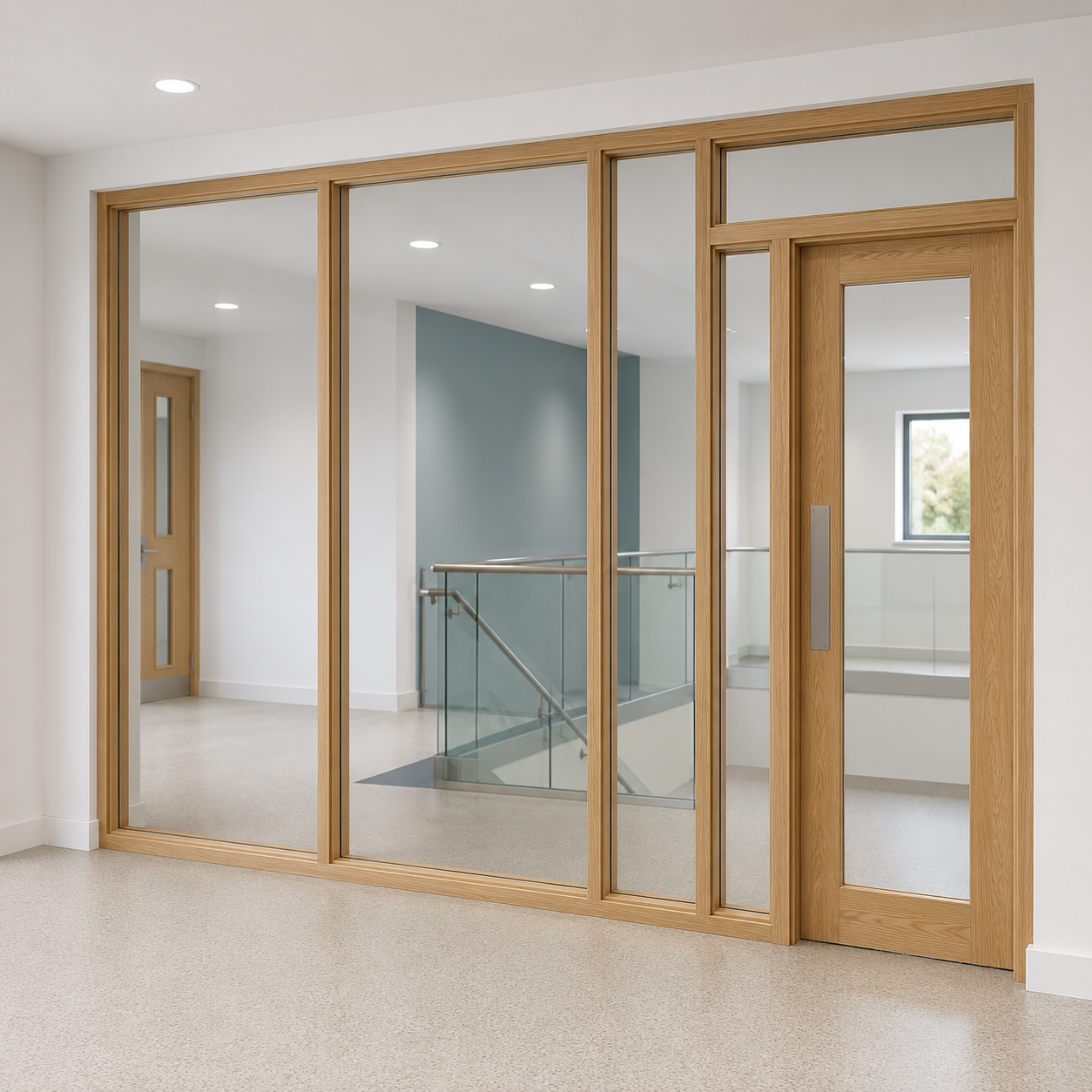

Our made-to-order glazed timber screens provide a practical way to divide internal spaces while maintaining natural light, visibility and fire protection.
Designed for education, healthcare, leisure and commercial environments, each screen can be manufactured to suit the dimensions, layout and glazing requirements of your project. Fire-rated configurations are available with 30-minute or 60-minute fire resistance, using compatible timber profiles and fire-rated glazing.
Screens can be supplied with a range of glass options, including obscured, wired, laminated and acoustic glazing. Single-glazed and double-glazed insulated units are also available, with acoustic performance of up to 51 dB, depending on the selected specification.
Matching pre-assembled fire doorsets can also be supplied to create a coordinated timber screen and entrance system.
Timber Profile Options
Standard glazing bead: 28 × 30mm on all timber screen profiles
Profile widths: 100mm, 150mm or 220mm
Profile thickness: 44mm
Fire ratings: FD30 & FD60
Bespoke screen layouts available
| Finish | Fire Rating | Profile Sizes |
|---|---|---|
| Beech Primed | FD30 | 100×44mm • 150×44mm • 220×44mm |
| Sapele Primed | FD60 | 100×44mm • 150×44mm • 220×44mm |
| White Oak (1 Coat Sealer) | FD30 & FD60 | 100×44mm • 150×44mm • 220×44mm |
Glass Specifications
From clear fire-rated glass to acoustic and insulated glazing, our comprehensive range of options ensures every timber screen can be tailored to meet your project's fire safety, performance and aesthetic requirements.
| Glass | Integrity | Insulation | Thickness | Acoustic |
|---|---|---|---|---|
| Pyrostem | 30 min | 0 min | 7mm | Rw 31dB |
| 7mm Pyroguard (C730) | 30 min | 0 min | 7.2mm | Rw 33dB |
| Pyrobelite 7 | 30 min | 0 min | 7.9mm | Rw 34dB |
| Pyrostem | 60 min | 0 min | 7mm | Rw 31dB |
| 11mm Pyroguard (C1160) | 60 min | 0 min | 11.4mm | Rw 35dB |
| Pyrobelite 12 | 60 min | 0 min | 12.3mm | Rw 36dB |
| 15mm Pyroguard Insulated | 30 min | 30 min | 15mm | Rw 38dB |
| Pyrobel 16 | 60 min | 30 min | 17.3mm | Rw 39dB |
| 23mm Pyroguard Insulated | 60 min | 60 min | 23mm | Rw 40dB |
| Pyrobel 25 | 60 min | 60 min | 26.6mm | Rw 40dB |
Finish Options
Our timber doors offer the following finishes. Please see the swatches below. The swatches are for guidance only. Actual swatches may vary. For more info, please contact our team and we are happy to help.
email: sales@premierfiredoors.com
phone: 0330 122 9550
