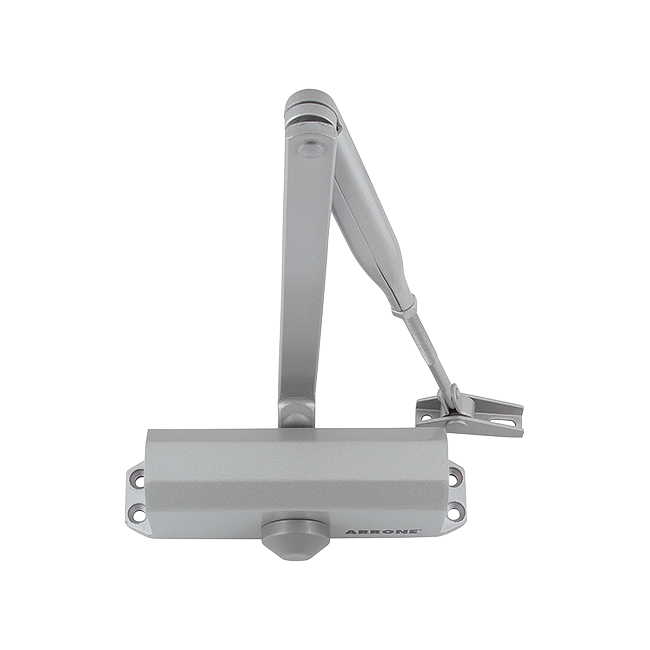

ARRONE Overhead Door Closer – Fixed Size 3, Silver Enamel, Timber Door
ARRONE Overhead Door Closer – Fixed Power Size 3, SE Finish
• Power size: Fixed size 3
• Mechanism type: Rack & pinion
• Function: Closing and latching speed control
• Arm type: Scissor arm with detachable joint and adjustable screw
• Arm application: Fig 1 (pull side), Fig 6 (push side – bracket sold separately), and Fig 61 (transom mount)
• Max door width: 950 mm
• Max door weight: 60 kg
• Opening angle: Up to 180°
• Finish: Silver Enamel (SE)
• Cover: No cover (mechanism only)
• Mechanism dimensions: 180 x 42 x 63 mm; Fixing centres: 164 x 19 mm
• Suitable for: Timber/Wooden doors
• Certified to BS EN 1154:1997 performance requirements
• Fire tested to BS EN 1634-1 – 30, 60, and 120 minutes on timber doors
• CE Marked (AD0178), UKCA Marked (UK-AD7700)
• Certifire approved (CF5629), DoP: HUK0018 (CE & UKCA)
• Reliable solution for controlled door closing in residential and commercial settings
