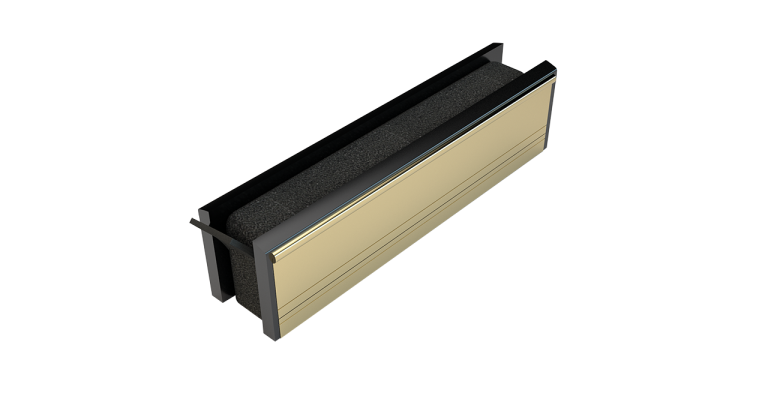

Letterplate - Advantage

Give your fire-rated timber door a high-performance letterplate that blends robust fire protection with sleek aesthetics. The Advantage letterplate offers up to 60 minutes fire integrity and comes in a variety of finishes and sizes.

Product Details:

• Fire-rated for up to 60 minutes integrity in compliance with BS 476 Part 20/22

• Suitable for timber doors of 44 mm and 54 mm thickness (also available for 40–80 mm variants)

• Integrated brush draught seal for improved insulation and air tightness

• Durable aluminium construction designed for heavy-duty use

• Available in multiple size options (typically 10" and 12") for standard mail openings

• Offered in a range of attractive finishes to complement door hardware

• Optional intumescent liner for enhanced fire and smoke protection

Ideal For:

• Fire-resisting timber doors in residential, commercial, and multi-occupancy buildings

• Installers, contractors, and architects needing certified hardware for fire-rated doors

• Projects that require both regulatory compliance and premium visual appeal

Installation Notes:

• Compatible with 44 mm or 54 mm door thickness (or 40–80 mm depending on variant)

• Should be fitted by a competent person following fire door installation guidelines

• Select appropriate size and finish to suit your door design and letterplate requirements

Specifications:

• Application: Fire-rated timber doorsets

• Fire Rating: Up to 60 minutes (BS 476 Part 20/22)

• Door Thickness: 44 mm & 54 mm (40–80 mm variant available)

• Material: Aluminium

• Finishes: Multiple finish options available

• Sizes: 10" and 12"

• Features: Integrated brush seal, intumescent liner, anti-snap flap (depending on model)

Certification

BM Trada
Fire Resistance Performance
