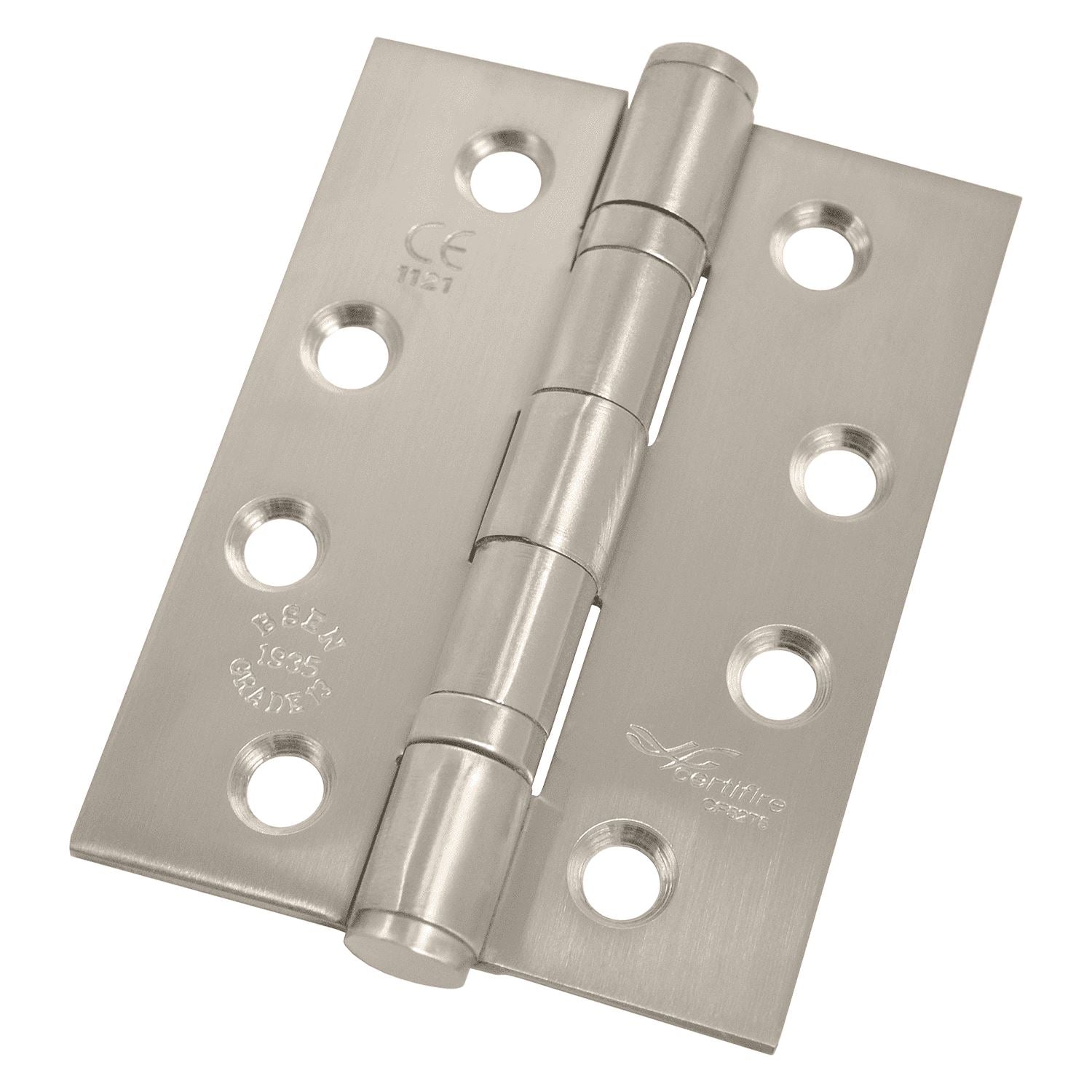

Grade 13 Plain Hinge, 202 Stainless Steel, 102mm high, 76mm wide
This is Zeros range of branded high quality CE marked Grade 13 stainless steel hinges. The slim knuckle hinges have two ball bearings for long life and are circular template drilled ensuring holes are always in the same position. The pin itself is also stainless steel to offer improved wear and resistance.
All hinges are marked with CE 1121, BS EN 1935: 2002 Grade 13. The full eight digit classification is as follows; 4-7-6-1-1-3-0-13. The main factors across the range being, 120kg carrying capacity, 200,000 cycles and suitable for severe duty applications.
Certifier approved and marked to confirm FD30 and FD60 rated.
