ARRONE Grade 13 Ball Bearing Hinge – Radius, SSS Finish (Pair)
ARRONE Grade 13 Ball Bearing Hinge – Radius Corner, Satin Stainless Steel

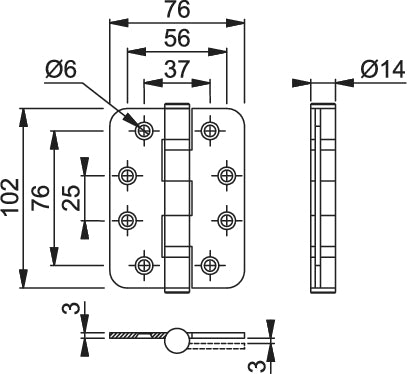

• Dimensions: 102 x 76 x 3 mm
• Material: Grade 201 (A1) stainless steel
• Finish: Satin Stainless Steel (SSS)
• Shape: Radius corners
• Bearing type: 2 ball bearings per hinge
• Fixing: 4-hole template drilled, countersunk; includes 16 x stainless steel pozidrive wood screws
• Door compatibility: Timber/Wooden doors
• Door weight capacity: Up to 120 kg
• Supplied as a pair
• CE Marked (AC0070), UKCA Marked (UK-AC7678)
• Certifire approved (CF369)
• Complies with BS EN 1935:2002 (4 | 7 | 6 | 1* | 1 | 4 | 0 | 13)
• Fire tested to BS EN 1634-1 – 30, 60, 90 & 120 min on timber, 240 min on steel doors
• Ideal for heavy-duty fire-rated residential or commercial applications
