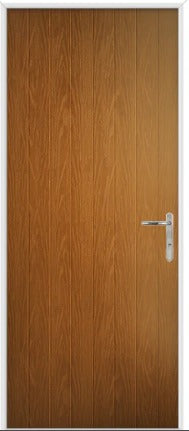

Unity Walliams T&G Composite FD30S Solid Flat Entrance (Min833x1895mm - Max1012x2115mm)
Please note once ordered, these are bespoke items and can not be cancelled
UK manufactured fire doors designed to perform by providing durability, security, fire resistance and great looks. A range of composite fire doors to meet relevant building and fire safety regulations.
Specification
(Min833x1895mm - Max1012x2115mm)
- Door Leaf Type: Solid Timber Core.
- Tong and Groove Finish.
- Outer Frame Type: PVCu Extruded.
- Pas24 certified
- Frame Reinforcement: Steel box section or Hardwood (Cost Option).
- Intumescent Seals: Applied to top and bottom of the door leaf, to the internal rebate and outside of the outer frame, and selected components.
- Threshold: Slimline with fire retardant seal - Low Mobility compliant OR 3mm air gap.
- U Value 1.8
- Timber Cill Options: None, 80x12 / 100x30 / 100x45 / 144x30 / 144x45
- Hinges: 4no Nico Lift off hinges / Steel butt hinges.
- Lock: ERA Surefire 4 point auto-fire locking system with adjustable keeps.
- Cylinder: 3* Key Thumb turn cylinder with 3 keys.
- Handle: Lever-Lever.
- Viewer: 180 degrees fire rated viewer (Non Cost Option).
- Knocker: Urn knocker (Non Cost Option).
- Letter Plate: Fire Rated TS008 Letter plate with integral cowl (Non Cost Option).
- Closer: Rutland TS11204 overhead closer OR Rutland TS11204 slide arm can action closer.
- Security Chain: Hook Type (Non Cost Option).
- Numerals: 75mm aluminium (Non Cost Option).
- Hardware Finish: Anodised Gold / Silver / Polished Gold / Chrome.
- Glazing System: Flush glazed with internal beads only. (excl Walliams/T&G)
- Glass Type: 24mm double glazed unit - Clear or Stipulate (External 6.8mm laminated / Internal 7.9mm Pyro-belite or 11mm Pyro-nova. (excl Walliams/T&G)
- Toplight: Available with Pyro-belite or Pyro-nova glass (Min height 260mm x Max Height 400mm). (Cost Option: contact sales@premierfiredoors.com)
Request Pricing
Tell us your requirements and we will review your specification against certified fire door systems.
Our team ensures compatibility, correct fire rating, and full documentation before issuing your quote.
NOTE: Our customer service team may be assisting other callers.
If you’re unable to reach us by phone, please email sales@premierfiredoors.com
A member of our team will provide a quotation as soon as possible.
Compliance & Certification
Fire doors must be fully traceable and supported by valid test evidence. All our products are backed by third-party certification and supplied as part of a compliant, tested system, not individual components.
Installation Guidance
Correct installation is essential to achieving fire performance. We provide technical guidance to ensure your door is installed in line with tested evidence, BS standards, and manufacturer requirements.
Delivery & Lead Times
Lead times vary depending on specification, finish, and configuration. We provide clear timelines and updates to support project planning and avoid delays on site.
Fire Doors are a System, not just a Door Leaf.
Compliance is achieved through correct specification, compatible components, and tested assemblies. Incorrect decisions at specification stage often lead to failed inspections, delays, and costly rework. Do not gamble with safety.
Ready to specify?
Provide your project details, quantities and specifications and our team will issue a structured quotation based on certified system requirements.
Not sure what you need?
Use our configurator to build a door based on your project requirements. We’ll guide you through key decisions like fire rating, sizing, glazing, and finish, so nothing critical is overlooked.
