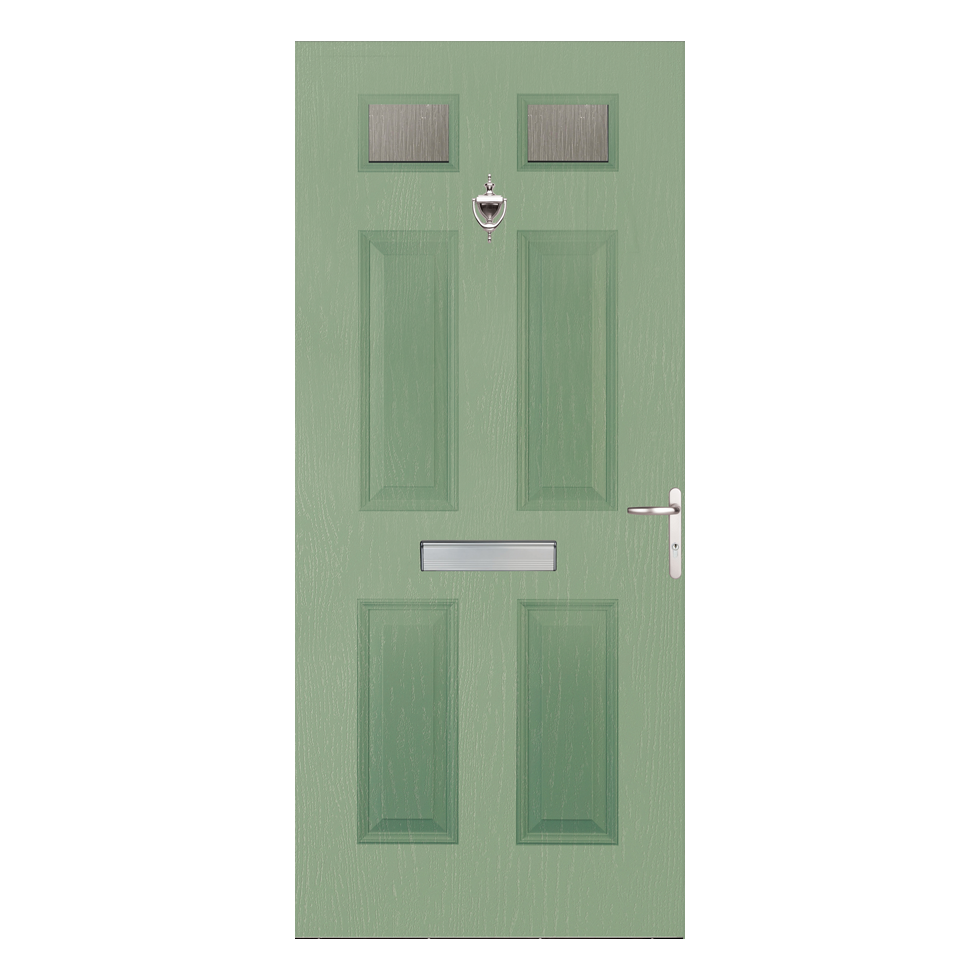

Unity Stratford 6 Panel Bespoke Composite FD30s (Top 2 Panels Glazed) Flat Entrance Door-set inc frame and fire rated Ironmongery PAS24 Certified (Min833x1895mm - Max1012x2115mm)
| -Door Leaf Manufacturer | Unity Doors Ltd. |
| Door Leaf Type: | Solid timber core with SMC external and PVCu internal facings |
| Outer Frame Type: | PVCu extrusion |
| Frame Reinforcement: | Engineered hardwood |
| Intumescent Seal Locations: | Top & bottom of door leaf, outer frame rebate & outside edge, & around selected components |
| Threshold: | Low level ‘Part M’ compliant mobility threshold OR 3mm air gap |
| Timber Cill Options: |
None, 12x80, 30x95, 45x95, 30x144 or 45x144 |
| Locks: | ERA Surefire 4-point autofire locking system with adjustable keeps Fullex SL16 Crimebeater 4-point slam shut autolock with adjustable keeps |
| Hinges: | 4no. steel butt hinges |
| Cylinder: | TS007 3 Star Key-thumbturn cylinder (3 keys) |
| Handles: | Lever/lever |
| Viewer: | TS002 fire rated viewer (optional) |
| Letter plate: | TS008 fire rated letter-plate with integral internal security cowl (optional) |
| Closers: |
Rutland TS.5204 scissor arm overhead closer |
| Security Chain: |
TS003 security chain (optional) |
| Numerals: |
75mm (optional) |
| Hardware Finish: |
Anodised Gold or Silver |
| Glazing system: |
Flush glazed with trims internally only |
| Glass type: |
Pyrobelite/laminated or Pyronova/ |
| Toplight Glass: |
Pyrobelite/laminated or Pyronova/ |
All our doors relate to BS standard
These are bespoke doors so important that all items are checked before placing order as no refunds given.
We also offer a unique 25 year guarantee but see terms and conditions as the customer has to have the door maintained every 6 months to maintain in good conditions
Request Pricing
Tell us your requirements and we will review your specification against certified fire door systems.
Our team ensures compatibility, correct fire rating, and full documentation before issuing your quote.
NOTE: Our customer service team may be assisting other callers.
If you’re unable to reach us by phone, please email sales@premierfiredoors.com
A member of our team will provide a quotation as soon as possible.
Compliance & Certification
Fire doors must be fully traceable and supported by valid test evidence. All our products are backed by third-party certification and supplied as part of a compliant, tested system, not individual components.
Installation Guidance
Correct installation is essential to achieving fire performance. We provide technical guidance to ensure your door is installed in line with tested evidence, BS standards, and manufacturer requirements.
Delivery & Lead Times
Lead times vary depending on specification, finish, and configuration. We provide clear timelines and updates to support project planning and avoid delays on site.
Fire Doors are a System, not just a Door Leaf.
Compliance is achieved through correct specification, compatible components, and tested assemblies. Incorrect decisions at specification stage often lead to failed inspections, delays, and costly rework. Do not gamble with safety.
